FDY-80A
特 點 ：
同心度準確性高。
本機一體成型，結構穩固、剛強、耐用。
本機適於管用接頭、美術燈館之接管滾牙、衛生器材、腳踏車花鼓、建築鷹架管及其他各型接管之滾花、滾牙加工。

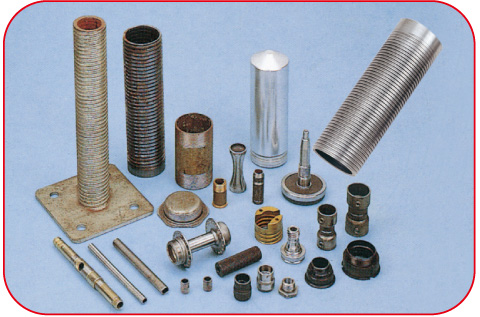

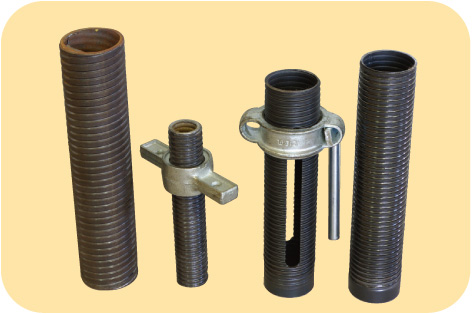

三輪式滾牙機加工範例
規格SPECIFICATIONS:
|
型式 Model |
FDY-80A |
FDY-90A |
|
滾製外徑 Rolling dia. |
25~100mm |
30~110mm |
|
節距 Pitch |
1~6.0 P |
1.5~6.0P |
|
滾製長度 Rolling length |
任何長度Anylength |
任何長度Anylength |
|
主軸馬達 Mainspindle motor |
10 HP |
30 HP |
|
油壓泵馬達 Hyd. pump motor |
5 HP |
7~1/2 HP |
|
冷卻泵馬達 Coolant pump motor |
1/4 HP |
1/4 HP |
|
滾輪軸直徑 Rolling spindle dia. |
54mm |
70mm |
|
滾輪外徑 Rolling dies dia. |
150mm |
180 mm |
|
滾輪厚度 Rolling dies thickness |
35/70 mm |
35/70/100 mm |
|
主軸間距 Distance between spindle centers |
120~200 |
150~250 mm |
|
滾輪轉速 Rev. speed of rolling dies |
80/134/188/250 rpm |
50~150rpm |
|
滾轉速率 Processing capacity |
4~10 pcs /min |
4~10 pcs/min |
|
油壓進給壓力 Hyd. feeding pressure |
18 Tons |
35 Tons |
|
床面至滾輪中心 Ht. from table surface to center of rolling dies |
1070mm |
1380mm |
|
淨重l毛重 N.W. /G.W. |
2500kg/2800kg |
3250kg/3600kg |
|
機械尺寸 Machine size |
1780x1650x1550mm |
1800x210x02000mm |
|
裝箱尺寸 Measurement |
1960x1750x1750mm |
198x02200x2200mm |
※規格尺寸如有變更，恕不另行通知。The specification & dimension are subjected to change without prior notice.
※規格外產品，歡迎洽詢訂製。 Machine made available on customer's request.
