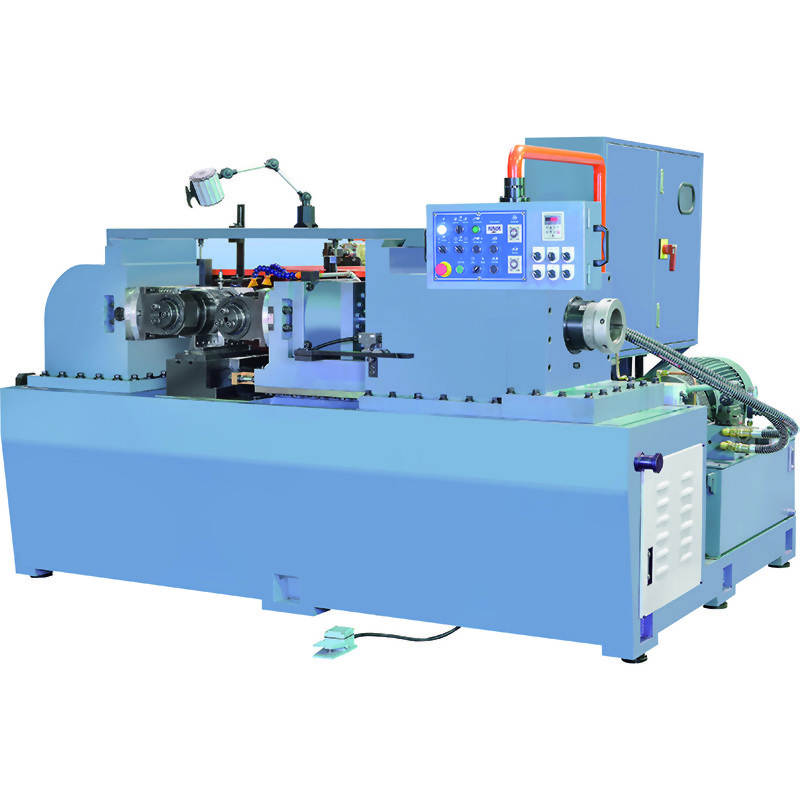

FDY-160
規格SPECIFICATIONS:
|
型式 Model |
FDY-160 |
|
滾製外徑 Rolling dia. |
20~120mm |
|
節距 Pitch |
2.0~16P |
|
滾製長度 Rolling length |
50mm~ 任何長度Any length |
|
主軸馬達 Mainspindle motor |
50 HP |
|
油壓泵馬達 Hyd. pump motor |
20 HP |
|
冷卻泵馬達 Coolant pump motor |
1/2 HP |
|
滾輪軸直徑 Rolling spindle dia. |
100mm |
|
滾輪外徑 Rolling dies dia. |
300mm (max.) |
|
滾輪厚度 Rolling dies thickness |
310mm (max.) |
|
主軸間距 Distance between spindle centers |
230~400mm |
|
滾輪轉速 Rev. speed of rolling dies |
0~60Varible Speed Motor |
|
滾轉速率 Processing capacity |
2~20 pcs/min |
|
油壓進給壓力 Hyd. feeding pressure |
110 Tons |
|
床面至滾輪中心 Ht. from table surface to center of rolling dies |
350mm |
|
淨重l毛重 N.W. /G.W. |
12,000kg/12,200kg |
|
機械尺寸 Machine size |
2600x2100x1950mm |
|
裝箱尺寸 Measurement |
3200x2250x2550mm |
※規格尺寸如有變更，恕不另行通知。The specification & dimension are subjected to change without prior notice.
※規格外產品，歡迎洽詢訂製。 Machine made available on customer's request.
